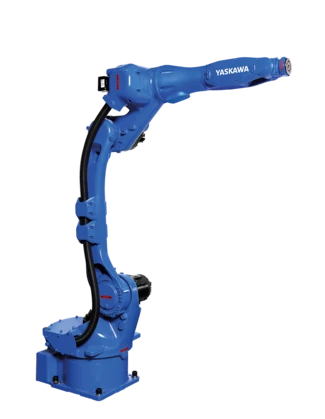

Motoman GP8L
- The MOTOMAN GP8L is a 6-axis general-purpose industrial robot providing 8 kg payload and a long reach of 1,636 mm.
- With its slim design and compact, narrow wrist, it is particularly suitable for applications where space is at a premium, such as loading/unloading containers in packaging technology or logistics.
- Automation around machine tools and injection molding machines can also be excellently implemented with this robot.
- With numerous functions, interfaces and communication options of the YRC1000/YRC1000micro controllers, the MOTOMAN GP8L is open to a full range of different technologies, including modern sensor systems and image processing systems, which can be combined very well.
Motoman GP8L Specification
- NUMBER OF AXES 6
- PAYLOAD 8 kg
- MAX. WORKING RANGE1,636 mm
- REPEATABILITY 0.02 mm
- WEIGHT 155 kg
- POWER SUPPLY 1.5 kVA
- S AXIS 260 °/s
- L AXIS 230 °/s
- U AXIS 260 °/s
- R AXIS 470 °/s
- B AXIS 550 °/s
- T AXIS 1,000 °/s
- MOUNTING OPTIONS Ceiling, Wall, Floor
