Motoman GP12 FGG là thiết bị Yaskawa chính hãng được Yaskawa Việt Nam phân phối, bảo hành 12 tháng và hỗ trợ kỹ thuật trọn đời.
Motoman GP
Motoman GP12 FGG
Giá: Liên hệ
Gọi 0904 828 747 hoặc email hungpv@haphongjsc.com để nhận báo giá và thời gian giao hàng nhanh nhất.
Gọi 0904 828 747 hoặc email hungpv@haphongjsc.com để nhận báo giá và thời gian giao hàng nhanh nhất.
Thông tin chi tiết Motoman GP12 FGG

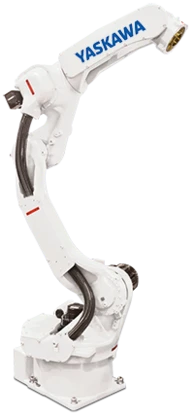

Motoman GP12 FGG
6-axis Robot for the Food Industry
Motoman GP12 FGG
- The GP12 FGG is a highly versatile 6-axis robot with 12 kg payload, 1440 mm reach and outstanding repeatability of +/- 0.02 mm.
- Specifications like high IP65/67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints, and a a special drip proof coating allows the robot to be used in certain food related applications.
- You will achieve high transfer rates with this extremely fast and efficient GP12 FGG robot, which offers a perfectly tuned payload / speed / wrist allowable moment in it’s class.
- Designed with the latest YASKAWA Sigma7-Servo Motor Generation, the GP12 FGG offers improved acceleration/deceleration control.
- The small footprint and slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient – media cables are guided through the hollow arm and wrist structure.
Motoman GP12 FGG Specification
- NUMBER OF AXES 6
- PAYLOAD 12 kg
- MAX. WORKING RANGE 1,440 mm
- REPEATABILITY 0.02 mm
- WEIGHT 155 kg
- POWER SUPPLY 1.5 kVA
- S AXIS 260 °/s
- L AXIS 230 °/s
- U AXIS 260 °/s
- R AXIS 470 °/s
- B AXIS 470 °/s
- T AXIS 700 °/s
- MOUNTING OPTIONS Ceiling, Wall, Floor
