Motoman GP8

Multi-Purpose 6-Axis Handling Robots

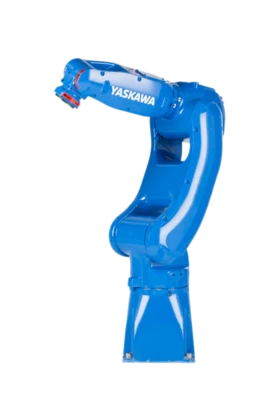

Motoman GP8

• The MOTOMAN GP8, one of our most successful robot models ever, is an extremely agile, compact and universal robot with 8 kg payload, 727 mm reach and superior repeatability of +/- 0.01 mm.
• Our customers appreciate the performance of the GP8 in all kind of handling, assembly, pick&place and quality testing applications.
• High IP 67 rating (dust and liquid protection) is standard, allowing the robot to work in harsh environments.
• The optional anti-corrosive coating (ACC) of the GP8 protects the robot in corrosive atmosphere such as acids, alkali and vapors. A GP8 food grade grease version and CR5 cleanroom class version is also available.

Motoman GP8 Specification

• NUMBER OF AXES 6
• PAYLOAD 8 kg
• MAX. WORKING RANGE 727 mm
• REPEATABILITY 0.01 mm
• WEIGHT 35 kg
• POWER SUPPLY 1 kVA
• S AXIS 455 °/s
• L AXIS 385 °/s
• U AXIS 520 °/s
• R AXIS 550 °/s
• B AXIS 550 °/s
• T AXIS 1,000 °/s
• MOUNTING OPTIONS Ceiling, Wall, Floor
