SGDV EtherCAT

SGDV EtherCAT là thiết bị Yaskawa chính hãng được Yaskawa Việt Nam phân phối, bảo hành 12 tháng và hỗ trợ kỹ thuật trọn đời.

Thương hiệu: Yaskawa (Nhật Bản)

Mã sản phẩm: SGDV EtherCAT

Danh mục: Servo and motion

Bảo hành: 12 tháng chính hãng

Tình trạng: Còn hàng – Giao toàn quốc

Giá: Liên hệ
Gọi 0904 828 747 hoặc email hungpv@haphongjsc.com để nhận báo giá và thời gian giao hàng nhanh nhất.

Thông tin chi tiết SGDV EtherCAT

SGDV EtherCAT

Name: SGDV EtherCAT
Brand: Yaskawa
Availability: InStock

SGDV EtherCAT

SGDV EtherCAT 10W to 55kW, 1.6 kHz Bandwidth

The Sigma-5 servo amplifier delivers the highest performance in the industry due its unmatched frequency response, reduced settling times and more precise control. In addition it provides a faster set up, simpler tuning, and vibration suppression. With a wide range of models and options to it can match your individual application requirements.

SGDV EtherCAT Models & Ratings

Single-phase 100 V

SERVOPACK Model SGDV-	R70F	R90F	2R1F	2R8F
Applicable Servomotor Max. Capacity kW	0.05	0.1	0.2	0.4
Continuous Output Current Arms	0.66	0.91	2.1	2.8
Max. Output Current Arms	2.1	2.9	6.5	9.3
Main Circuit (Single Phase)	100 to 115 VAC+10% to −15% 50/60 Hz
Control Circuit (Single Phase)	100 to 115 VAC+10% to −15% 50/60 Hz

Single-phase 200 V

SERVOPACK Model SGDV-	120
Applicable Servomotor Max. Capacity kW	1.5
Continuous Output Current Arms	11.6
Max. Output Current Arms	28
Main Circuit (Single Phase)	220 to 230 VAC+10% to −15% 50/60 Hz
Control Circuit (Single Phase)	220 to 230 VAC+10% to −15% 50/60 Hz

Three-phase 200 V

SERVOPACK Model SGDV-	R70A	R90A	1R6A	2R8A	3R8A	5R5A	7R6A	120A
Applicable Servomotor Max. Capacity kW	0.05	0.1	0.2	0.4	0.5	0.75	1.0	1.5
Continuous Output Current Arms	0.66	0.91	1.6	2.8	3.8	5.5	7.6	11.6
Max. Output Current Arms	2.1	2.9	6.5	9.3	11	16.9	17	28
Main Circuit	Three-phase 200 to 230 VAC+10% to −15% 50/60 Hz
Control Circuit	Single-phase 200 to 230 VAC+10% to −15% 50/60 Hz

SERVOPACK Model SGDV-	180A	200A	330A	470A	550A	590A	780A
Applicable Servomotor Max. Capacity kW	2.0	3.0	5.0	6	7.5	11	15
Continuous Output Current Arms	18.5	19.6	32.9	46.9	54.7	58.6	78
Max. Output Current Arms	42	56	84	110	130	140	170
Main Circuit	Three-phase 200 to 230 VAC+10% to −15% 50/60 Hz
Control Circuit	Single-phase 200 to 230 VAC+10% to −15% 50/60 Hz

Three-phase 400 V

SERVOPACK Model SGDV-	1R9D	3R5D	5R4D	8R4D	120D	170D	210D	260D	280D	370D
Applicable Servomotor Max. Capacity kW	0.5	1.0	1.5	2.0	3.0	5.0	6	7.5	11	15
Continuous Output Current Arms	1.9	3.5	5.4	8.4	11.9	16.5	20.8	25.4	28.1	37.2
Max. Output Current Arms	5.5	8.5	14	20	28	42	55	65	70	85
Main Circuit	Three-phase 380 to 480 VAC+10% to −15% 50/60 Hz
Control Circuit	24 VDC ±15%

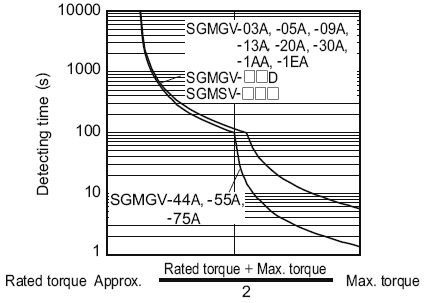

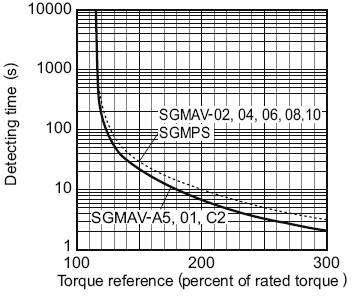

SERVOPACK Overload Characteristics



Note: Overload characteristics shown above do not guarantee continuous duty of 100% or more output. Use a servomotor with effective torque within the continuous duty zone of Torque-Motor Speed Characteristics.
